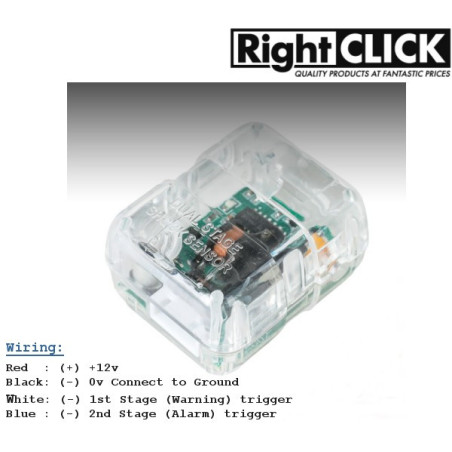

Shock Sensor Dual Stage for car alarms

The dual stage shock sensor effectively works like two separate sensors. The first "stage" or "zone" is set to be more sensitive and is usually connected to the "warn off" feature found on many alarms, or a separate buzzer. The second stage is connected to the alarms main sensor input and is then set to protect the interior of the car, triggering the the full alarm if it is activated..

• 12v Universal electronic dual stage shock sensor
• Fully Adjustable Sensitivity
• LED to assist in Sensitivity Adjustment
• Negative Trigger Output - compatible with any alarm with a negative trigger input
• Connects to alarm's Negative (-) trigger input, Unit have a 4-pin input to main system, can also be hardwired.
• Two zones - one for warning, one for alarm trigger
• Quality Products at fantastic prices!

Wiring:
Red:   (+) +12v
Black: (-) 0v Connect to Ground
White: (-) 1st Stage (Warning) trigger (negative)
Blue:  (-) 2nd Stage (Alarm) trigger (negative)

 Package Contents:

• Shock Sensor dual stage with attached cable
